Direct Product Stream Separation
Installed directly in the product flow, often at chute or conveyor discharge points, to capture ferrous contamination before downstream processing.
INLINE & CHUTE MAGNETS
Compact in-stream magnetic separation for gravity-fed and pneumatic conveying systems, protecting downstream equipment with minimal disruption to product flow.
INLINE • CHUTE • GRAVITY-FED & PNEUMATIC SYSTEMS

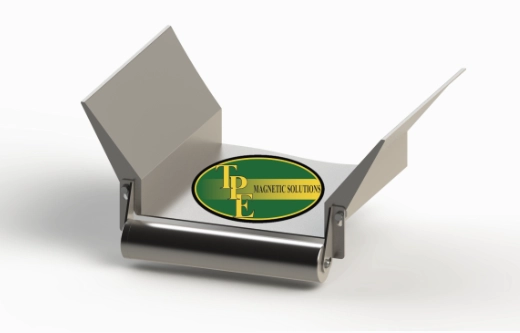

Inline & Chute Magnets
Inline and Chute Magnets are designed to remove ferrous contamination from gravity-fed and pneumatic conveying systems. Their compact design allows easy integration into existing production processes while protecting downstream equipment. Installed directly in the product stream, these units provide deep-reach capture, high holding force and minimal clogging for powders, pellets, granules and bulk product flow.
Inline & Chute Magnets Overview
Inline and Chute Magnets are designed to remove ferrous contamination from gravity-fed and pneumatic conveying systems. Their compact design allows easy integration into existing production processes while protecting downstream equipment.
Inline and chute magnets are designed for fine maize, flour, spices, powders, pellets and granules. These units are installed directly in the product flow, often at the end of a chute or conveyor, and include step-face designs to retain contaminants outside the main stream. Food-grade seals and HACCP-compliant build options are available.
Inline & Chute Magnets Overview
Inline and Chute Magnets remove ferrous contamination directly from gravity-fed and pneumatic conveying systems while protecting downstream equipment and maintaining product flow.
Gravity-Fed and Pneumatic Systems
Suitable for gravity-fed chutes, conveyor discharge points and pneumatic conveying applications.
Compact Integration
Compact design allows easy integration into existing production processes with minimal disruption to plant layout.
Step-Face Contaminant Retention
Step-face designs help retain contaminants outside the main product stream for improved holding force and reduced recontamination risk.
Industries Served
Inline and Chute Magnets are suitable for food processing, plastics, grain milling, chemical, mining, recycling, aggregate processing, bulk powder handling, wood and charcoal applications.
Food Processing
Used to remove ferrous contamination from flour, spices, maize, powders, granules and food ingredients.
Plastics Industry
Suitable for plastic pellets, granules, powders and regrind material where magnetic protection is required.
Grain Milling
Used in grain milling lines handling flour, maize, grain products and related dry bulk materials.
Chemical Industry
Suitable for chemical processing applications where powders, pellets or granules require ferrous contamination control.
Mining
Used in mining environments where conveyed product streams require magnetic protection or ferrous removal.
Recycling
Suitable for recycling applications where ferrous particles must be removed from mixed or conveyed product streams.
Aggregate Processing
Used in aggregate and quarrying applications to protect downstream equipment from ferrous contamination.
Bulk Powder Handling
Designed for bulk powder handling where magnetic capture is required directly in the product stream.
Wood Industry
Used in wood processing where nails, screws or other ferrous contaminants may be present.
Charcoal Industry
Suitable for charcoal processing where ferrous material must be removed from dry product flow.
Key Features
Deep-Reach Capture
Provides deep-reach magnetic capture directly in the product stream.
High Holding Force
Designed to retain captured ferrous contaminants securely during product flow.
Minimal Clogging
Designed to support product movement with reduced clogging risk in suitable applications.
Stainless Steel Construction
Stainless steel construction with sanitary finishes and supplied certification available.
Food-Grade Options
Food-grade seals and HACCP-compliant build options are available where required.
Custom Sizing
Units are sized to suit chute geometry, conveyor discharge points and process line requirements.
Key Benefits
Protects Downstream Equipment
Removes ferrous contamination before it reaches mills, conveyors, processing equipment or packaging lines.
Improves Product Purity
Supports cleaner product streams by removing magnetic contamination from powders, pellets, granules and bulk materials.
Easy Process Integration
Compact design allows installation into existing production processes with minimal layout changes.
Supports Hygienic Processing
Food-grade and sanitary build options support food, grain and powder handling applications.
Custom Matched to Product Flow
Configured to suit product flow, particle size, process requirements and installation point.
Specifications
Final specifications depend on product flow, particle size, chute geometry, conveyor discharge point, hygiene requirement, installation position and separation target.
| Gauss | 2,500 – 12,000 surface gauss. |
| Build | Stainless steel construction with sanitary finishes and supplied certification. |
| Integration | Installed at chute or conveyor discharge points and sized to your process line. |
| Applications | Suitable for gravity-fed and pneumatic conveying systems. |
| Products | Suitable for fine maize, flour, spices, powders, pellets and granules. |
| Options | Food-grade seals and HACCP-compliant build options are available. |
Specifications are the intellectual property of Techco Power Engineering and may not be reproduced without written consent.
Integration Note
Inline and Chute Magnets should be configured according to chute geometry, product flow, particle size and downstream equipment protection requirements.
Configure Your In-Line Unit
Custom-matched to your product flow, particle size and processing requirements. Speak to a product specialist to select the correct Inline or Chute Magnet for your production line.
