Food-grade tube, grate, bar, grill, hopper, housed, and framed grid magnets for powders, granules, free-flowing products, hoppers, chutes, pipelines, and process systems.
HACCP • GRID & GRATE MAGNETS • FOOD GRADE
Grid magnets, also known as grate magnets, tube magnets, bar magnets, grill magnets, and hopper magnets, are manufactured from food-grade stainless steel tubes and designed for hygienic magnetic separation of powders, granules, and free-flowing products. Tubes are seal-welded, polished, and spaced to maintain optimal material flow while capturing ferrous contaminants. Grid / Grate Magnets are available as loose grid tubes, housed grid magnets, and grid magnets in frames for use across food processing, plastics, pharmaceuticals, animal feed, recycling, carbon processing, quality control, laboratory testing, chemical processing, grain milling, farming, agriculture, bulk powder handling, and general industrial applications.
Grid / Grate Magnets are available in different formats depending on installation method, product flow, cleaning requirements, and industry application.
Loose Grid Tubes are high-intensity magnetic bars used individually or incorporated into custom magnetic systems. They remove ferrous contamination from powders, granules, and free-flowing products. Industries served include food processing, plastics, pharmaceuticals, animal feed, recycling, carbon processing, quality control, and laboratory testing.
Housed Grid Magnets provide a complete magnetic separation assembly for installation within pipelines, hoppers, and process systems. Industries served include the chemical industry, plastics industry, grain milling, food processing, recycling, farming, and agriculture.

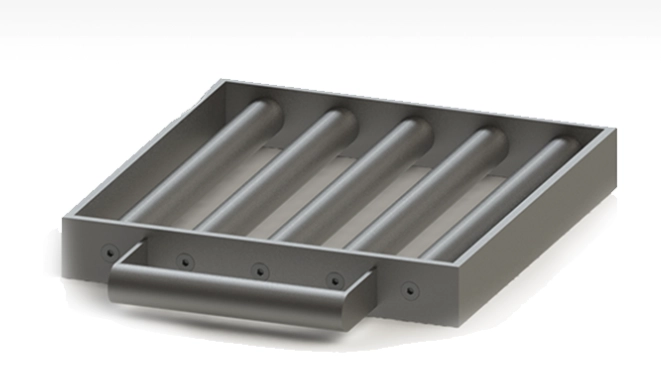

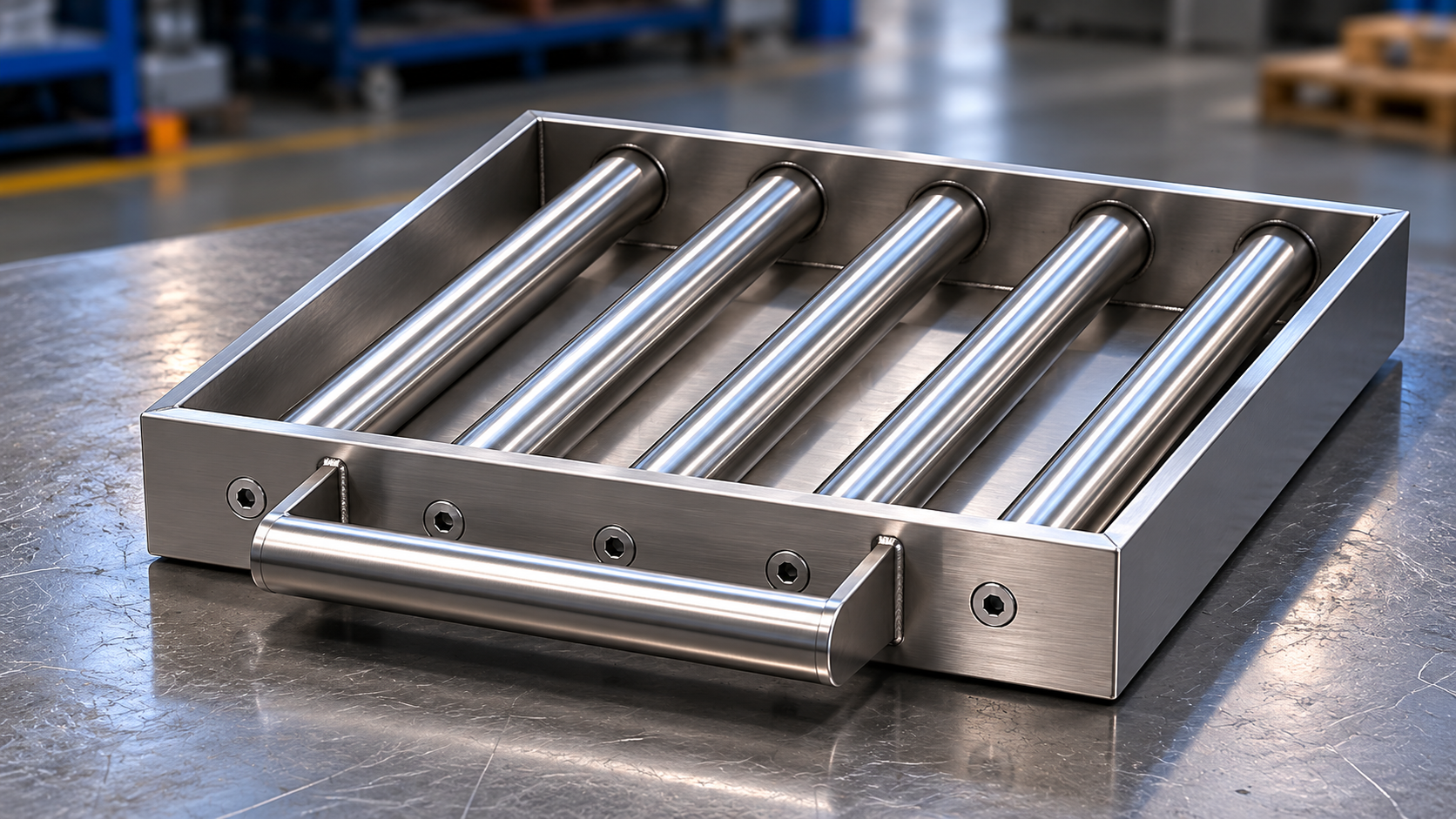

Grid Magnets in Frames are designed for gravity-fed chutes, hoppers, and processing lines where maximum product contact is required. Industries served include food production, recycling, bulk powder handling, plastics industry, grain processing, agriculture, and chemical industry.
Grid / Grate Magnets are used across industries where ferrous contamination must be removed from powders, granules, and free-flowing dry products.
Suitable for hoppers and chutes handling flour, spices, grains, granules, and food ingredients where hygienic magnetic separation is required.
Used to remove ferrous contamination from plastic pellets, granules, powders, and regrind material.
Suitable for pharmaceutical powder and granular product handling where product purity and contamination control are critical.
Used in animal feed processing to remove ferrous contamination from feed ingredients and finished product streams.
Used in recycling operations to capture ferrous particles from free-flowing material streams.
Suitable for carbon and charcoal-related processing where ferrous material must be removed from dry product flow.
Loose tubes and small-scale grid magnets can be used for quality control checks, sampling, and lab-scale testing.
Used in chemical processing environments where powders and granular products require magnetic protection.
Used in grain milling and grain handling lines to protect downstream equipment and improve product purity.
Suitable for agricultural processing, grain handling, feed handling, and farming-related product streams.
Used in gravity-fed bulk powder handling systems where maximum product contact with magnetic tubes is required.
Manufactured from food-grade stainless steel tubes for hygienic magnetic separation applications.
Tubes are seal-welded and polished to support hygienic operation and easier cleaning.
Tube spacing is designed to maintain product flow while capturing ferrous contaminants.
Available as loose tubes, housed grid magnets, housed drawer grids, and framed grids with toggle clamps.
Designed to remove ferrous contamination from powders, granules, and free-flowing materials.
Suitable for hoppers, chutes, pipelines, gravity-fed systems, and processing lines.
Helps remove ferrous contamination from powders, granules, and free-flowing materials before downstream processing.
Protects mills, conveyors, processing equipment, and packaging systems from damaging tramp metal.
Food-grade stainless steel construction supports hygienic processing and food safety requirements.
Available in loose tube, housed, and framed configurations to suit different layouts and production environments.
Tube spacing and grid design help maintain product flow while exposing product to strong magnetic fields.
Calibration certificates stating achieved gauss can be supplied for audit and quality-control requirements.
Final specifications depend on product type, product flow, tube diameter, gauss requirement, temperature rating, installation format, cleaning requirements, and industry application.
| Tube Diameters | 12.5–72 mm tubes; effective radius 10–50 mm. |
| Gauss | 1,500 – 12,000 surface gauss. |
| Temperature Rating | Up to 120°C typical. |
| Finish | Sanitary polished stainless steel with seal-welded ends. |
| Documentation | Calibration certificates stating achieved gauss available. |
| Options | Available as loose grid tubes, housed drawer grids, and framed grids with toggle clamps. |
| Compliance | Suitable for food industry hoppers and chutes; HACCP Magsep compliant where specified. |
Case study: Bakery product purity improved by 25% using Techco framed grid systems.
Built to HACCP standards and supplied with audit-ready certification where required. Speak to a product specialist to select the correct loose grid tube, housed grid magnet, or framed grid system for your product flow and industry application.
