Continuous Conveyor Separation
Automatically removes ferrous contaminants from conveyed materials without stopping production.
HEAD PULLEY MAGNETS
Continuous conveyor-mounted ferrous separation for mining, recycling, aggregate processing, food processing, chemical, mineral, destoning, wood and charcoal applications.
CONVEYOR SEPARATION • FAST RETROFIT • CONTINUOUS PROTECTION

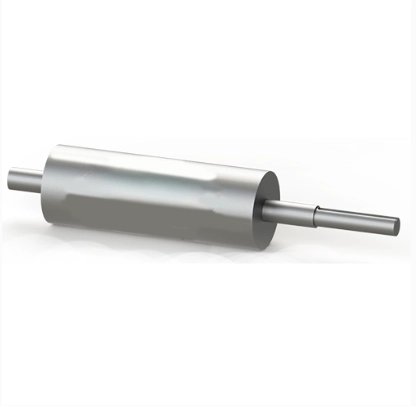

Head Pulley Magnets
Head Pulley Magnets replace standard conveyor pulleys and automatically remove ferrous contaminants from conveyed materials. They provide continuous separation without additional moving parts, making them ideal for high-throughput operations. Magnetic particles are carried around the pulley and discharged separately while clean material follows its normal trajectory, supporting continuous protection, product purity and equipment safety.
Head Pulley Magnets Overview
Head Pulley Magnets replace standard conveyor pulleys and automatically remove ferrous contaminants from conveyed materials. They provide continuous separation without additional moving parts, making them ideal for high-throughput operations.
Magnetic head pulley separators replace existing conveyor head pulleys to continuously remove ferrous contaminants from material streams. Magnetic particles are carried around the pulley and discharged separately, while clean material follows its normal trajectory. Ideal for mining, recycling, aggregate processing, food processing, chemical industry, mineral beneficiation, mineral separation, destoning applications, wood industry and charcoal industry, these systems are custom-built for fast retrofit with minimal downtime.
Head Pulley Magnets Overview
Head Pulley Magnets are conveyor-mounted magnetic separators that replace standard conveyor head pulleys and continuously remove ferrous contaminants from conveyed material streams.
Replaces Standard Head Pulleys
Designed as a magnetic replacement for existing conveyor head pulleys, supporting fast retrofit with minimal downtime.
No Additional Moving Parts
Provides continuous magnetic separation without adding complex moving mechanisms to the conveyor system.
Clean Material Discharge
Magnetic particles are carried around the pulley and discharged separately while clean material follows its normal trajectory.
Industries Served
Head Pulley Magnets are used in mining, recycling, aggregate processing, food processing, chemical, mineral beneficiation, mineral separation, destoning, wood and charcoal applications.
Mining
Used to remove ferrous contamination and protect crushers, screens and downstream equipment in mining operations.
Recycling
Used to separate steel and ferrous contaminants from mixed recycling streams on conveyor systems.
Aggregate Processing
Suitable for quarrying and aggregate processing where tramp metal must be removed from conveyed material.
Food Processing
Suitable for food processing conveyor applications where ferrous contamination removal supports product purity and equipment protection.
Chemical Industry
Used in chemical processing environments where conveyed material streams require continuous magnetic protection.
Mineral Beneficiation
Supports beneficiation processes by removing or recovering ferrous material from mineral streams.
Mineral Separation
Used in mineral separation applications where magnetic recovery or contaminant removal is required.
Destoning Applications
Can support destoning and material-cleaning applications where ferrous contaminants must be removed from conveyed product.
Wood Industry
Suitable for wood processing lines where nails, screws or other ferrous contaminants may be present.
Charcoal Industry
Suitable for charcoal processing where ferrous particles must be removed from conveyed product streams.
Key Features
Magnetic Head Pulley Retrofit
Direct replacement for existing conveyor head pulleys with custom shaft machining.
Automatic Ferrous Discharge
Ferrous material is held by the magnetic field and discharged separately as the belt changes direction.
High-Throughput Operation
Designed for continuous separation in high-volume conveyor applications.
Optional Lagging
Optional lagging can be supplied for improved belt grip and reduced slip in demanding applications.
Custom Shaft Machining
Shafts can be machined to match existing gearbox, motor and conveyor requirements.
Documentation Available
Full QA traceability, certificates and documentation can be supplied where required.
Key Benefits
Continuous Separation
Automatic ferrous discharge without stopping production.
Fast Retrofit
Direct replacement for existing head pulleys with custom shaft machining.
Low Maintenance
Durable construction with optional lagging for improved belt grip.
Equipment Protection
Helps protect crushers, conveyors, screens and downstream equipment from damaging tramp metal.
Improved Product Purity
Removes ferrous contamination from conveyed material streams before downstream processing.
Minimal Downtime
Custom-built retrofit design helps reduce installation downtime during conveyor upgrades.
Specifications
Final specifications depend on belt width, belt speed, pulley diameter, face width, burden depth, material type, contaminants, environment and separation requirements.
| Magnetic Performance | 1,000–13,000 surface gauss; certificates supplied. |
| Sizes | Custom diameters and face widths to suit conveyor systems. |
| Shaft and Fitment | Machined shafts for direct gearbox and motor compatibility. |
| Construction | Stainless steel shells with heavy-duty hubs and sealed bearings. |
| Environment | Designed for abrasive, wet, or high-temperature environments. |
| Compliance | Full QA traceability and documentation available. |
| Installation Type | Designed to replace standard conveyor head pulleys for continuous magnetic separation. |
| Options | Optional lagging available for improved traction and reduced belt slip. |
Specifications are the intellectual property of Techco Power Engineering and may not be reproduced without written consent.
Sizing Note
A product specialist will size the pulley based on burden depth, belt speed, pulley dimensions and separation requirements for optimal performance.
Installation and Integration
Confirm Conveyor Details
Confirm belt width, speed, pulley size, burden depth, material type and layout requirements.
Custom Shaft Machining
Custom shaft machining is completed to match the existing gearbox or motor.
Optional Lagging
Optional lagging can be installed for improved traction in heavy-duty or long conveyor applications.
Commissioning Support
Commissioning support and performance verification are available where required.
Head Pulley Magnet FAQs
What information is required for a quote?
Belt width, speed, pulley dimensions, burden depth, material type, contaminants and operating environment.
Can it retrofit existing systems?
Yes. Shafts are machined to match existing gearbox and motor specifications.
Is belt lagging required?
Lagging is recommended for heavy-duty or long conveyors to improve traction and reduce belt slip.
Specify Your Magnetic Head Pulley
Fast lead times, export-ready build and full documentation included. Speak to a product specialist to specify the correct magnetic head pulley for your conveyor, material stream and separation requirements.
