Media Gallery

At Techco Power Engineering, our grid / grate magnets installed on stacking conveyor outlets are engineered to provide effective, final-stage magnetic separation in bulk material handling systems. Positioned at critical discharge points, these systems ensure that ferrous contaminants are removed just before material is transferred, stacked, or stored—maximising product quality and protecting downstream processes. Grid / grate magnets consist of high-intensity magnetic tubes arranged in a structured grid within a durable stainless steel frame. As material discharges from the conveyor, it passes directly through the magnetic grid, where ferrous contaminants such as iron particles, tramp metal, and fine debris are attracted and securely retained—while clean product continues to flow freely. Installed at conveyor outlets, these systems act as a critical control point in the process. By capturing contaminants at the final stage of material handling, they help prevent contamination during stockpiling, reduce the risk of downstream equipment damage, and ensure higher product purity—particularly in applications such as mining, recycling, and bulk material processing. The grid design ensures maximum contact between the material and the magnetic field, even in high-flow conditions. As material cascades through the magnetic tubes, contaminants are captured and held securely beneath the bars, preventing them from re-entering the product stream. Manufactured from high-quality stainless steel and fitted with powerful rare-earth magnetic elements, our systems are built for durability, corrosion resistance, and long-term performance in harsh operating environments. The robust construction ensures reliable operation under continuous use, even in high-throughput and abrasive applications. Each unit is custom-designed to suit your conveyor system, with configurable sizes, grid layouts, and mounting options to ensure seamless integration with stacking conveyors and discharge points. Optional features such as removable grids or easy-clean designs can be incorporated to simplify maintenance and reduce downtime. At Techco Power Engineering, we combine advanced magnetic technology with precision fabrication to deliver customised separation solutions. Our grate magnets for stacking conveyor outlets are designed to enhance product quality, protect equipment, and ensure efficient, reliable performance across your material handling operations.

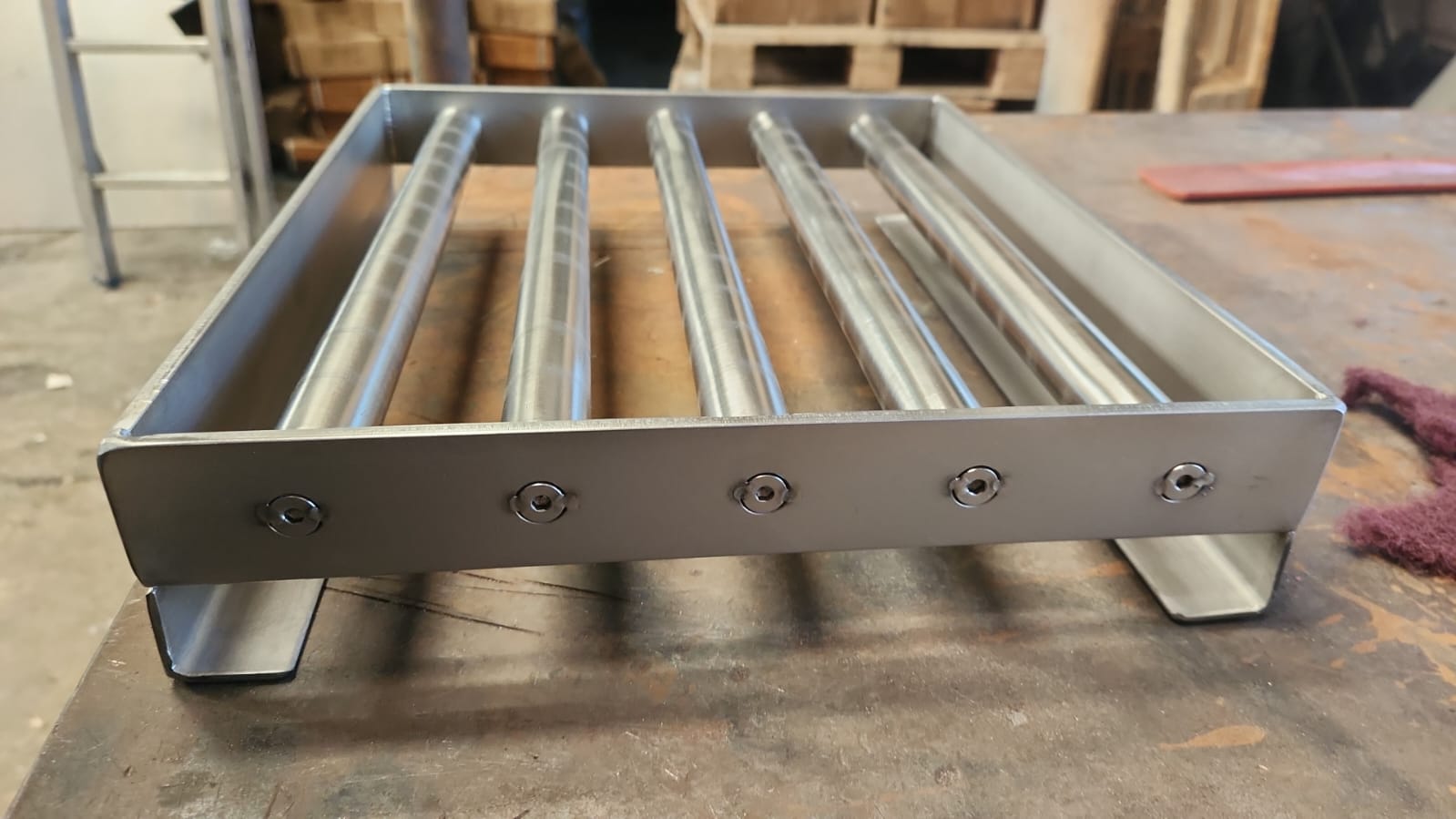

At Techco Power Engineering, our square grid / grate magnets are engineered to deliver efficient and reliable magnetic separation in gravity-fed processing systems. Designed for installation in hoppers, chutes, and bins, these units ensure effective removal of ferrous contaminants while maintaining smooth and uninterrupted material flow. Grid / grate magnets consist of a series of high-intensity magnetic tubes arranged in a square grid formation within a durable stainless steel frame. As material passes through the grid, ferrous particles such as iron filings, tramp metal, and fine contaminants are attracted to the magnetic surfaces and securely held—allowing clean product to continue through the process. The square design provides uniform coverage across the material flow area, ensuring consistent exposure to the magnetic field and maximising separation efficiency. This configuration is particularly effective for dry, free-flowing materials such as powders, granules, and bulk solids, where even distribution and full contact are essential for optimal performance. Manufactured from high-quality stainless steel (typically 304 or 316), our square grate magnets are built for durability, corrosion resistance, and long-term reliability in demanding industrial environments. High-intensity magnetic elements—often using rare-earth technology—generate strong magnetic fields capable of capturing even fine and weakly magnetic particles. These systems are widely used across industries such as food processing, pharmaceuticals, plastics, chemicals, mining, and recycling—where maintaining product purity and protecting downstream equipment is critical. By removing contaminants early in the process, grate magnets help reduce equipment wear, prevent product contamination, and improve overall operational efficiency. Each unit is custom-designed to suit your application, with configurable sizes, bar spacing, and mounting options to ensure seamless integration into your process. Easy-clean or removable grid designs can be incorporated to simplify maintenance and minimise downtime. At Techco Power Engineering, we combine advanced magnetic technology with precision fabrication to deliver customised grid magnet solutions. Our square grate magnets are built to enhance product quality, protect equipment, and provide reliable, long-term performance across your operations.

At Techco Power Engineering, we design and manufacture custom multiple tier grid / grate magnets engineered to deliver maximum magnetic separation efficiency in demanding processing environments. Built as multi-stage systems, these magnets are specifically developed to handle high product volumes and elevated contamination levels—ensuring superior removal of ferrous materials and consistent product quality. Grid / grate magnets consist of high-intensity magnetic tubes arranged within a stainless steel frame, positioned directly in the product flow to maximise contact with free-flowing materials. The multi-tier design enhances this principle by introducing multiple layers of magnetic grids, forcing material to pass through successive stages of magnetic separation. This significantly increases exposure to the magnetic field and improves the capture of both coarse and fine ferrous contaminants. As material cascades through each tier, contaminants such as iron particles, tramp metal, and metal fines are progressively removed, resulting in higher separation efficiency compared to single-layer systems. This makes multi-tier grate magnets ideal for applications involving powders, granules, and bulk solids where product purity and equipment protection are critical. Our custom-engineered designs can incorporate staggered grids, optimised spacing, and tailored configurations to eliminate straight-through flow paths and ensure even distribution across all magnetic layers. This not only improves separation performance but also helps reduce material build-up and maintain consistent flow through the system. Manufactured from high-quality food-grade stainless steel and fitted with powerful magnetic elements, our systems are built for durability, corrosion resistance, and hygienic operation. Fully welded and polished finishes ensure compliance with industry standards, making them suitable for both industrial and food-grade applications. Each system is fully customised to suit your application, with configurable sizes, number of tiers, bar spacing, and mounting options for seamless integration into hoppers, chutes, or processing lines. Additional features such as easy-clean or drawer-style systems can be incorporated to simplify maintenance and reduce downtime. At Techco Power Engineering, we combine advanced magnetic technology with precision fabrication to deliver tailored multi-tier grate magnet solutions—designed to maximise separation efficiency, protect equipment, and provide reliable, long-term performance across your operations.

At Techco Power Engineering, our grid / grate magnets with diverters are engineered to deliver enhanced magnetic separation efficiency in gravity-fed processing systems. Designed for installation in hoppers, chutes, and material transfer points, these systems combine high-intensity magnetic filtration with controlled material flow—ensuring maximum contaminant removal and consistent performance. Grate magnets consist of a matrix of powerful magnetic tubes arranged within a stainless steel frame. As material flows through the grid, ferrous contaminants such as iron particles, tramp metal, and fine debris are attracted to the magnetic surfaces and securely retained, while clean product continues through the process. The addition of integrated diverters or baffles is a key design enhancement. These components redirect and distribute the material flow across the magnetic grid, preventing straight-through paths and ensuring that all product is exposed to the magnetic field. By forcing the material to change direction and cascade over the magnetic bars, diverters significantly increase contact time and improve separation efficiency—particularly in high-flow or high-contamination applications. This design is especially effective for dry, free-flowing materials such as powders, granules, and bulk solids, where controlled flow is critical to avoid bridging and uneven distribution. Grid magnets with diverters are widely used across industries including food processing, plastics, chemicals, mining, and recycling—helping to maintain product purity, protect downstream equipment, and reduce downtime. Manufactured from high-quality stainless steel (typically 304 or 316) and fitted with high-intensity rare-earth magnetic elements, our systems are built for durability, corrosion resistance, and long-term performance. The robust construction ensures reliable operation in demanding environments, while hygienic finishes can be incorporated for food-grade applications. Each unit is custom-designed to suit your specific application, with configurable sizes, diverter configurations, bar spacing, and magnetic strengths. Whether installed in standard or irregularly shaped hoppers, our solutions are engineered to integrate seamlessly into your process while maximising separation performance. At Techco Power Engineering, we combine advanced magnetic technology with precision fabrication to deliver customised grate magnet solutions. Our grid / grate magnets with diverters are designed to enhance efficiency, improve product quality, and ensure reliable, long-term operation across your processing systems.

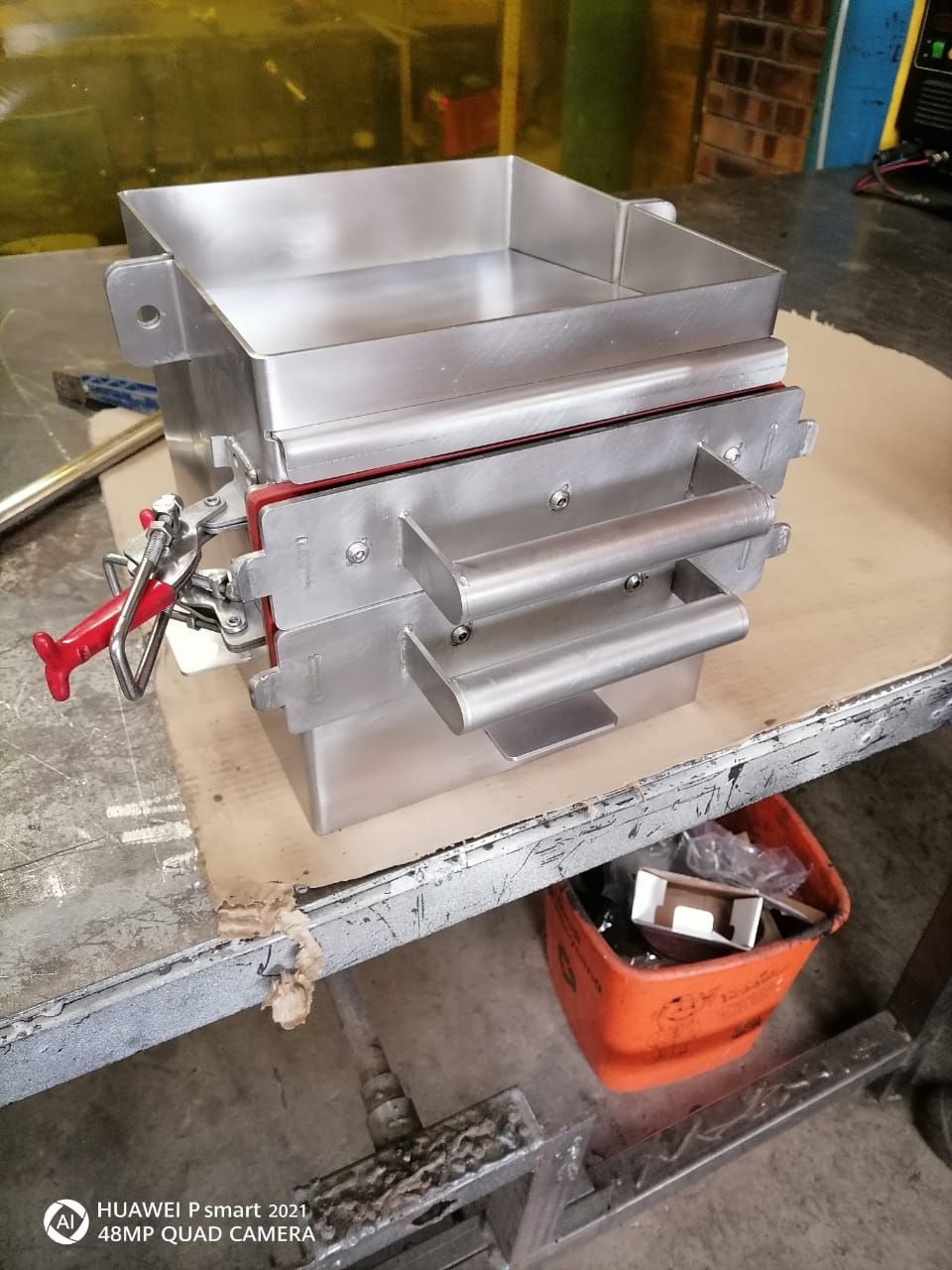

At Techco Power Engineering, our 3 tier grid / grate magnets with housing and drawers are engineered to deliver maximum magnetic separation efficiency in enclosed processing systems. Designed for high-performance applications, these multi-stage systems provide enhanced contaminant removal while ensuring easy access for cleaning and maintenance. The system consists of three layers of high-intensity magnetic tubes arranged in a staggered grid configuration within a robust stainless steel housing. As material flows through the unit, it is forced to pass across multiple magnetic stages, significantly increasing contact with the magnetic field. This multi-layer design greatly improves the capture of ferrous contaminants—ranging from coarse tramp metal to fine particles—ensuring higher levels of product purity. Each layer is strategically positioned to eliminate straight-through flow paths, allowing progressive filtration as material cascades through the system. This design is particularly effective for fine powders, granules, and high-contamination applications where single-layer systems may not provide sufficient separation efficiency. The integrated housing ensures controlled material flow and seamless installation into chutes, ducts, or processing lines, while the drawer-style configuration allows the magnetic grids to be easily withdrawn for inspection and cleaning. This enables quick and safe removal of captured metal without disrupting operations, reducing downtime and improving overall process efficiency. Manufactured from high-quality stainless steel (typically 304 or 316) and fitted with powerful rare-earth magnetic elements, our systems are built for durability, corrosion resistance, and long-term performance. High-strength magnetic fields—often exceeding 10,000 gauss—ensure effective removal of even fine and weakly magnetic particles. These systems are widely used across industries such as food processing, plastics, chemicals, mining, and recycling, where maintaining product purity and protecting downstream equipment is critical. By removing contaminants early in the process, they help reduce equipment wear, prevent product contamination, and ensure compliance with quality standards. Each unit is custom-designed to suit your application, with configurable sizes, layer configurations, bar spacing, and connection types to ensure seamless integration into your process. Optional easy-clean or quick-release mechanisms can further enhance maintenance efficiency. At Techco Power Engineering, we combine advanced magnetic technology with precision fabrication to deliver customised multi-layer grate magnet solutions. Our 3 tier systems are built to maximise separation efficiency, minimise downtime, and provide reliable, long-term performance in demanding processing environments.

At Techco Power Engineering, our easy cleaning multi-layer grid / grate magnets are engineered to deliver high-efficiency magnetic separation for dry, free-flowing materials in demanding processing environments. Designed to maximise contact between the product and magnetic field, these systems provide superior contaminant removal while ensuring minimal downtime through fast and simple cleaning. Multi-layer grate magnets consist of multiple rows of high-intensity magnetic tubes arranged in a staggered configuration within a stainless steel frame or housing. As material passes through the unit, it cascades across each magnetic layer, ensuring repeated exposure to the magnetic field. This significantly improves separation efficiency, capturing both coarse and fine ferrous contaminants such as iron particles, tramp metal, and metal fines. The easy-clean design is a key feature, allowing operators to quickly and safely remove accumulated metal without manual scraping. By simply sliding or extracting the magnetic cores from their stainless steel sleeves, the captured contaminants are released instantly—reducing cleaning time to seconds and supporting continuous or high-throughput operations. These systems are widely used across industries such as food processing, plastics, chemicals, mining, and recycling, where maintaining product purity and protecting downstream equipment is critical. Multi-layer configurations are particularly effective in applications with high contamination levels or where fine particles must be removed to meet quality standards. Manufactured from high-quality stainless steel (typically 304 or 316) and fitted with powerful rare-earth magnetic elements, our grate magnets are built for durability, corrosion resistance, and long-term performance. The hygienic design, smooth finishes, and robust construction make them suitable for both industrial and food-grade environments. Each unit is custom-designed to suit your application, with configurable sizes, number of magnetic layers, bar spacing, and mounting options to ensure seamless integration into hoppers, chutes, or processing lines. At Techco Power Engineering, we combine advanced magnetic technology with precision fabrication to deliver customised multi-layer grate magnet solutions—enhancing product quality, reducing downtime, and ensuring reliable, long-term performance in demanding processing environments.

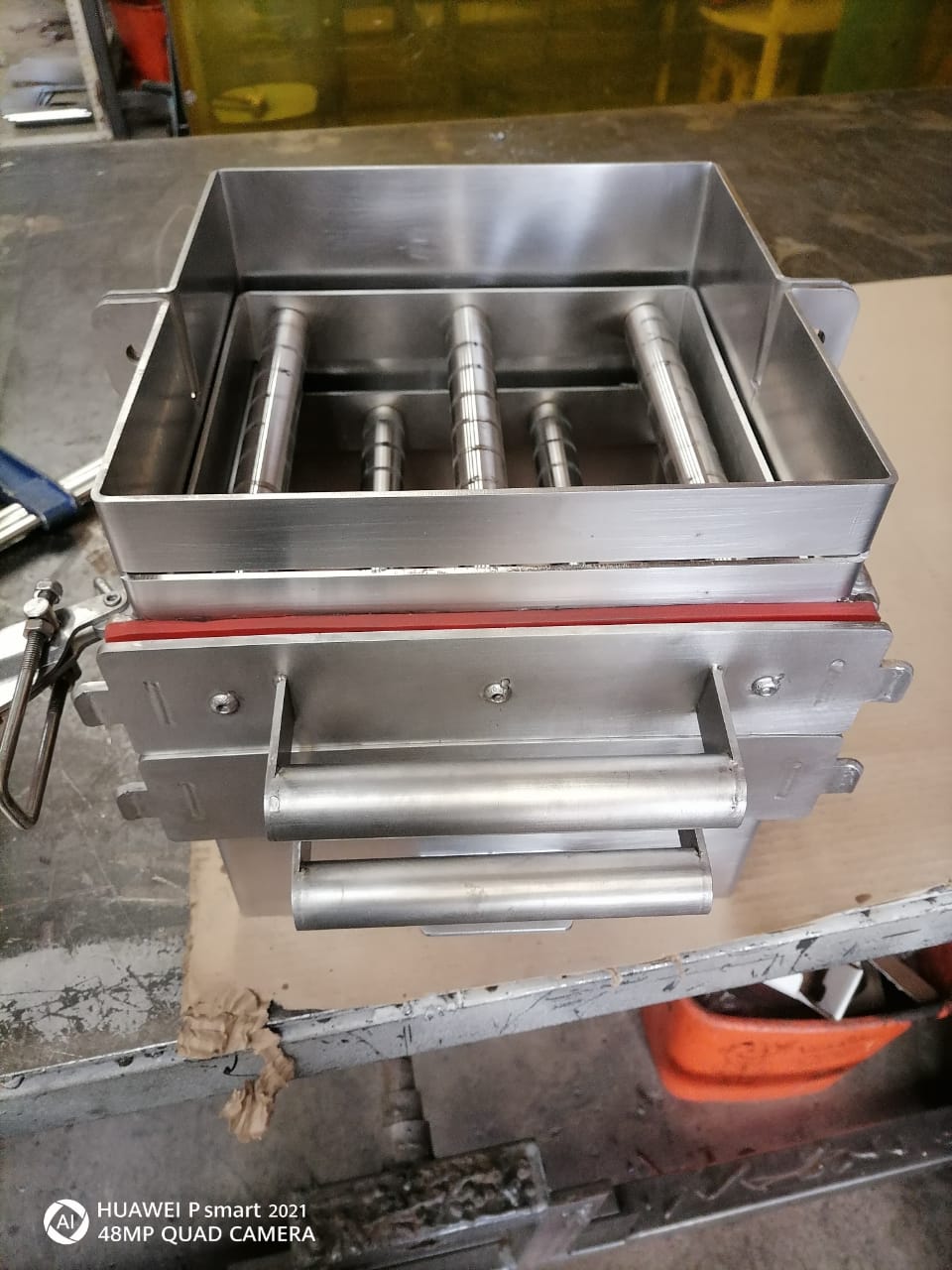

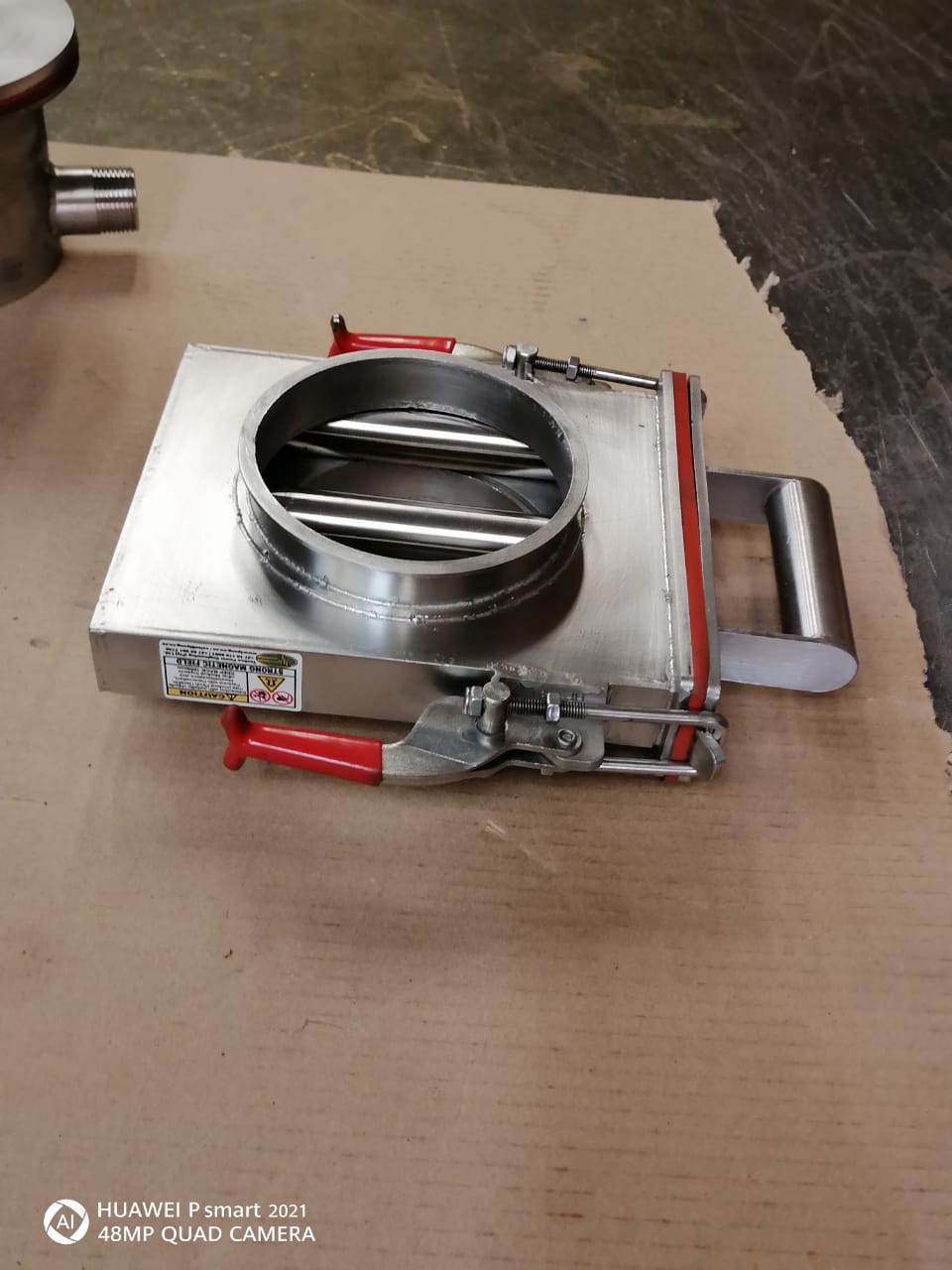

At Techco Power Engineering, our drawer grid / grate magnets are engineered to deliver high-efficiency magnetic separation within enclosed processing systems. Designed for installation in chutes, ducts, and gravity-fed lines, these units provide reliable removal of ferrous contaminants while allowing for easy access, inspection, and cleaning. Drawer grate magnets consist of multiple rows of high-intensity magnetic tubes housed within a stainless steel enclosure. As material flows through the unit, it cascades over the staggered magnetic bars, ensuring maximum contact with the magnetic field. Ferrous particles such as iron filings, tramp metal, and fine contaminants are attracted and securely held, while clean product continues through the process uninterrupted. Specifically designed for closed systems, drawer-type magnets are ideal for use in vertical chutes and ducts where access is limited. The pull-out drawer design allows operators to easily slide out the magnetic assembly for inspection and cleaning, minimising downtime and simplifying maintenance procedures. These systems are widely used across industries such as food processing, plastics, chemicals, mining, and recycling—where maintaining product purity and protecting downstream equipment is essential. By capturing both medium and fine ferrous particles from dry, free-flowing materials, drawer grate magnets help reduce contamination risks and improve overall process efficiency. Manufactured from high-quality stainless steel (typically 304 or 316) and equipped with powerful rare-earth magnetic elements, our units are built for durability, corrosion resistance, and long-term performance. Multiple magnetic layers and staggered configurations can be incorporated to increase separation efficiency, particularly in high-flow or high-contamination applications. Each drawer grid / grate magnet is custom-designed to suit your application, with configurable sizes, housing designs, and magnetic strengths to ensure seamless integration into your system. Optional easy-clean and quick-release features further enhance operational efficiency and safety. At Techco Power Engineering, we combine advanced magnetic technology with precision fabrication to deliver customised magnetic separation solutions. Our drawer grate magnets are built to enhance product quality, protect equipment, and provide reliable, long-term performance in demanding industrial environments.

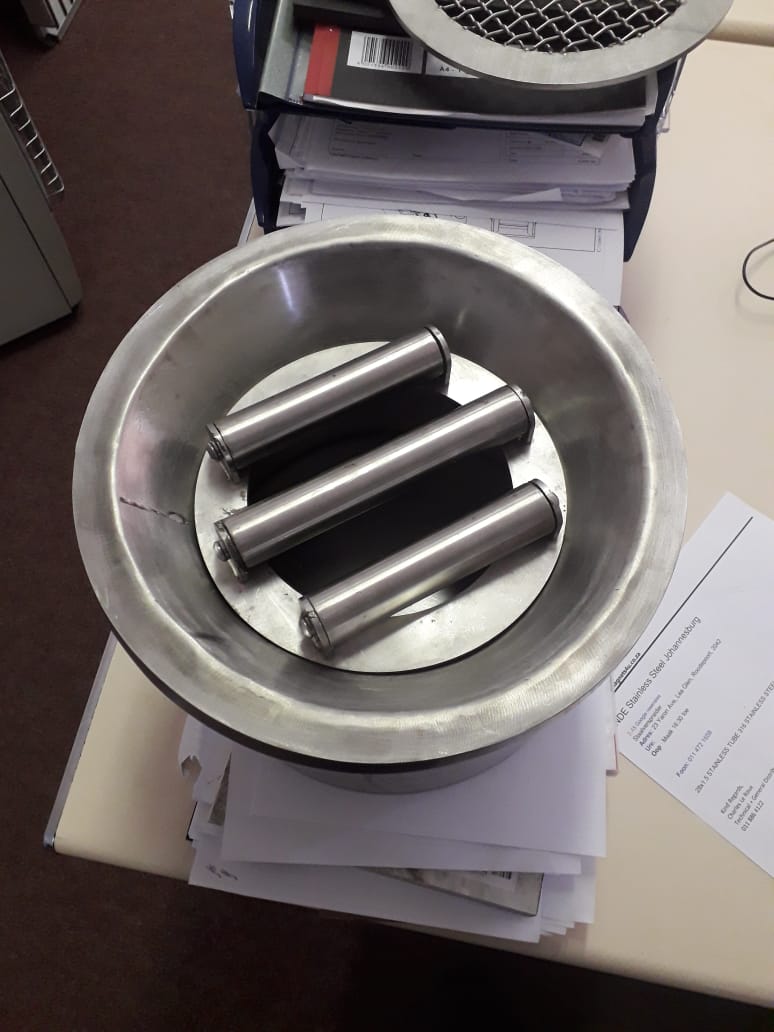

At Techco Power Engineering, our grid / grate magnets with tapered sides are specifically engineered for installation in hoppers, providing efficient and reliable removal of ferrous contaminants from bulk materials. Designed to optimise material flow while maximising magnetic contact, these systems ensure high-performance separation in gravity-fed applications. Grate magnets consist of a grid of high-intensity magnetic tubes arranged within a stainless steel frame. As material flows through the hopper, it is directed across the magnetic bars, where ferrous particles such as iron filings, tramp metal, and fine contaminants are attracted and securely held—allowing clean product to pass through uninterrupted. The addition of tapered sides enhances flow characteristics by guiding material evenly through the magnetic grid. This design minimises bridging and build-up within the hopper while ensuring maximum exposure of the product to the magnetic field—improving separation efficiency and consistency. Tapered configurations are particularly effective in steep or irregularly shaped hoppers where controlled flow is critical. These systems are widely used in industries such as food processing, plastics, chemicals, mining, and recycling, where maintaining product purity and protecting downstream equipment is essential. By capturing ferrous contaminants at key transfer points, grate magnets help reduce equipment wear, prevent product contamination, and minimise costly downtime. Manufactured from high-quality stainless steel and fitted with powerful rare-earth magnetic elements, our grate magnets are built for durability, corrosion resistance, and long-term performance. Hygienic designs are available for food-grade applications, with smooth finishes and easy-clean features to support compliance with industry standards. Each unit is custom-designed to suit your hopper dimensions, material characteristics, and process requirements. Options such as removable grids, quick-clean systems, and multiple magnetic layers can be incorporated to enhance performance and simplify maintenance. At Techco Power Engineering, we combine advanced magnetic technology with precision fabrication to deliver customised grate magnet solutions. Our tapered hopper grid magnets are designed to improve product quality, protect equipment, and ensure efficient, reliable operation in demanding processing environments.
